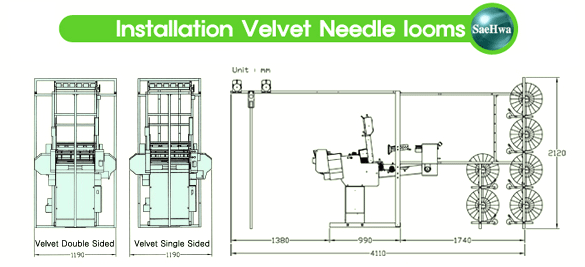

VELVET RIBBON
NEEDLE LOOM
|
| |
| ::: SH/VD-4/50 ::: |
|
The specifications and design are subject to be changed without any
prior notice for improvement. |
| |
 |
|
Model |
SH/VD-6/30 |
SH/VD-4/50 |
SH/VD-2/75 |
| Fabric type |
Double-sided |
Double-sided |
Double-sided |
| Production line |
6 |
4 |
2 |
| Front reed width |
30mm |
50mm |
75mm |
| Fabric width |
15mm |
30mm |
50mm |
| Thickness of velvet |
0.3~1.5mm |
0.3~1.5mm |
0.3~1.5mm |
| Heald Frame |
12~14pcs |
12~14pcs |
12pcs |
| Chain repeat |
1:8-48 |
1:8-48 |
1:8-48 |
| Weaving speed(rpm) |
800-1,000 |
600-800 |
600-700 |
| Density(picks/inch) |
2-52 |
2-52 |
52 |
| Stop motion |
Warp, Weft, (catching) thread |
| Motor |
1HP(0.75Kw), 220-380 Volt, 50-60Hz, 3Phase |
|
| |
| ::: SH/VS-6/30 ::: |
 |
The specifications and design are subject to be changed without any
prior notice for improvement.
|
| |
 |
Model |
SH/VS-6/30 |
SH/VS-4/50 |
SH/VS-2/75 |
| Fabric type |
Single-sided |
Single-sided |
Single-sided |
| Production line |
6 |
4 |
2 |
| Front reed width |
30mm |
50mm |
75mm |
| Fabric width |
15mm |
30mm |
50mm |
| Thickness of velvet |
0.3~1.5mm |
0.3~1.5mm |
0.3~1.5mm |
| Heald Frame |
12~14pcs |
12~14pcs |
12pcs |
| Chain repeat |
1:8-48 |
1:8-48 |
1:8-48 |
| Weaving speed(rpm) |
800-1,000 |
600-800 |
600-700 |
| Density(picks/inch) |
2-52 |
2-52 |
2-52 |
| Stop motion |
Warp, Weft, (catching) thread |
| Motor |
1HP(0.75Kw), 220-380 Volt, 50-60Hz, 3Phase |
|
| |
 |
|
|
